High-Ribbed Concrete Reinforcement Mesh Permanent Formwork Mesh
Product Description
Cement pouring formwork structure is a lightweight, structural stay-in-place formwork system used to build reinforced concrete walls. It is composed of two filtering grids made of rib lath and reinforced by C-profiles. The grids are attached to each other with articulated rebar connectors.
Once Cement pouring formwork mesh is secured to the ground, concrete is poured inside. The excess water eliminates itself through the grids while the fluid concrete becomes semi-solid. The elimination of the excess water decreases pressure against the grids. We remains inside the structure and acts as reinforcement.
We constructions can be completed simply, rapidly and cost effectively with non-qualified labor.
Product Specification
| Material | Galvanized steel |
| Type | Cement Formwork Systems |
| Length | 2800mm 2500mm 2200mm |
| Product Weight | 11 kg/m2 |
| Package | 10sheets/bundle 500 sheets/pallet |
| Usage | concrete constructions swimming pool construction buliding |
Product Advantages:
Cement pouring formwork structure Panel is an innovative construction material specifically designed for wall plastering in buildings. Its unique characteristics make it an ideal choice for a wide range of construction projects.
Lightweight and Easy to Install:
Cement pouring formwork structure Panel's lightweight design significantly simplifies the installation process, reducing the physical strain on workers and speeding up construction timelines.
High Construction Efficiency:
With Cement pouring formwork structure Panel, construction teams can achieve higher productivity levels due to its quick and seamless installation process. This leads to shorter project durations and faster completion times.
Cost Savings on Labor:
By facilitating a more straightforward and efficient installation process, Cement pouring formwork structure Panel helps to minimize labor costs. Its user-friendly nature reduces the need for extensive training, allowing even less experienced workers to perform installations with ease.
Versatile for Various Applications: Cement pouring formwork structure Panel's versatility makes it suitable for creating both walls and floors. Its adaptable nature ensures that it can meet diverse construction needs and specifications, making it a valuable asset in any building project.
In summary, Cement pouring formwork structure Panel offers a combination of convenience, efficiency, and cost-effectiveness, revolutionizing the way walls are constructed in buildings.
Cement Pouring formwork structure COMPOSITION:
The two sides weight 11 kg/m2. It is composed of:
Rib Lath
Expanded metal with rib produced from commercial quality cold rolled and hot galvanized steel in accordance with ASTM C 847.
0.5 mm thickness.
C-Profiles
Produced from commercial quality cold rolled and hot galvanized steel in accordance with ASTM C 847.
0.6 mm thickness.
Connectors
Made from steel in coil grade B DIN 17 223 or equivalent.
20 mm width.
1.5mm thickness.
Longitudinal Rebar
Made from Fe 400 (French Norm) or equivalent.
500 N/mm2 elasticity limit.
700 N/mm2 traction strength.
5 mm diameter (minimum).
COMPANY:
Anping Velp Wire Mesh Products Co.,Ltd offers an extensive range of expanded metal , perforated metal mesh , safety walkway grating ,Stainless steel 304 /316 weave mesh ,Building stucco mesh with various specification and designs to meet different demand.
We only stock and sell premium quality, China made, burr free and flat sheets .

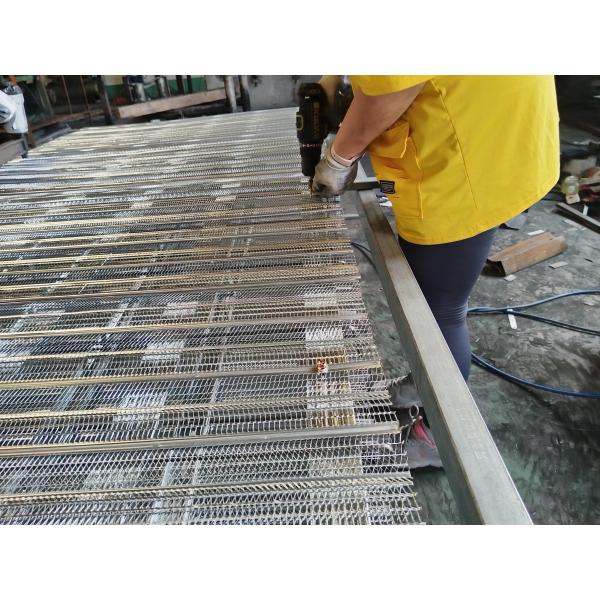

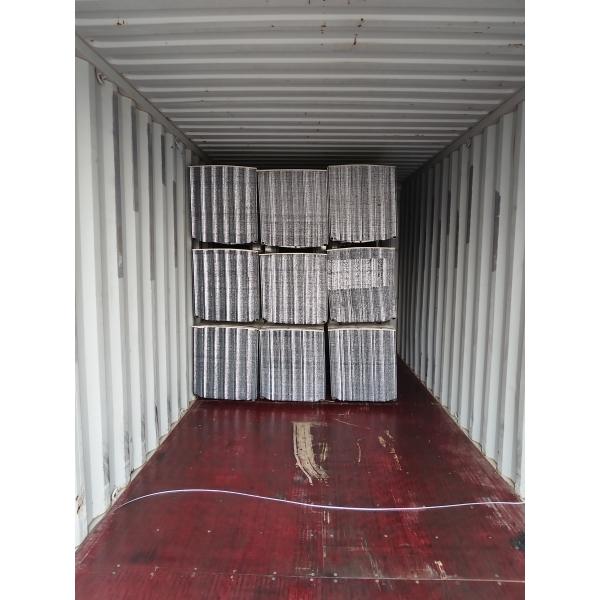

Show details pictures:
Product Tags:
|
|
Galvanized Steel High-Ribbed Concrete Reinforcement Mesh for Permanent Formwork Images
|
